EAS AM – SYSTEMS.

BRAND NEW DESIGN – RAKO‘s brand new AM system has been developed with careful consideration of the current market needs and trends. The system allows for a universal configuration that enables optimization of the installation cost and number of antennas needed to secure the store.

Our main board consist of a TX part and includes in total three receiver slots. You can combine a TRX (MONO) with up to two additional receivers or you can set the system to a TXRX mode to achieve a DUAL functionality.

The system is ready to be used with our RAKO SPHERE online platform in order to provide you with full remote tuning functionality.

The remote tuning concept allows mainly for service purposes.

An EAS system consists one mono antenna as stand alone or several dual antennas to complement each other. Just plug them in, and they are ready to go.

Acousto-magnetic EAS systems use a transmitter to create a surveillance area where tags and labels are detected. The transmitter sends a radio frequency signal at a frequency of  58 KHz (thousand of cycles per second), but the frequency is sent in pulses. The transmit signal energizes a tag in the surveillance zone. When the transmit signal pulse ends, the tag responds, emitting a single frequency signal like a tuning fork. The tag signal is at about the same frequency as the transmitter signal.

While the transmitter is often between pulses, the tag signal is detected by a receiver. A microcomputer checks the tag signal detected by the receiver to ensure it is at the right frequency, occurs in time synchronized to the transmitter , at the proper level, and at the correct repetition rate. If the criteria is met, an alarm occurs.

The antennas just need power supply and you are ready to go. The antennas have a predefined setting ex works. Depending on the store enviroment or possible interferences from other stores they can be also fine tuned to the desired performance.

  • Reliable system

  • Long range signal

  • Easy and fast integration

  • Good performance

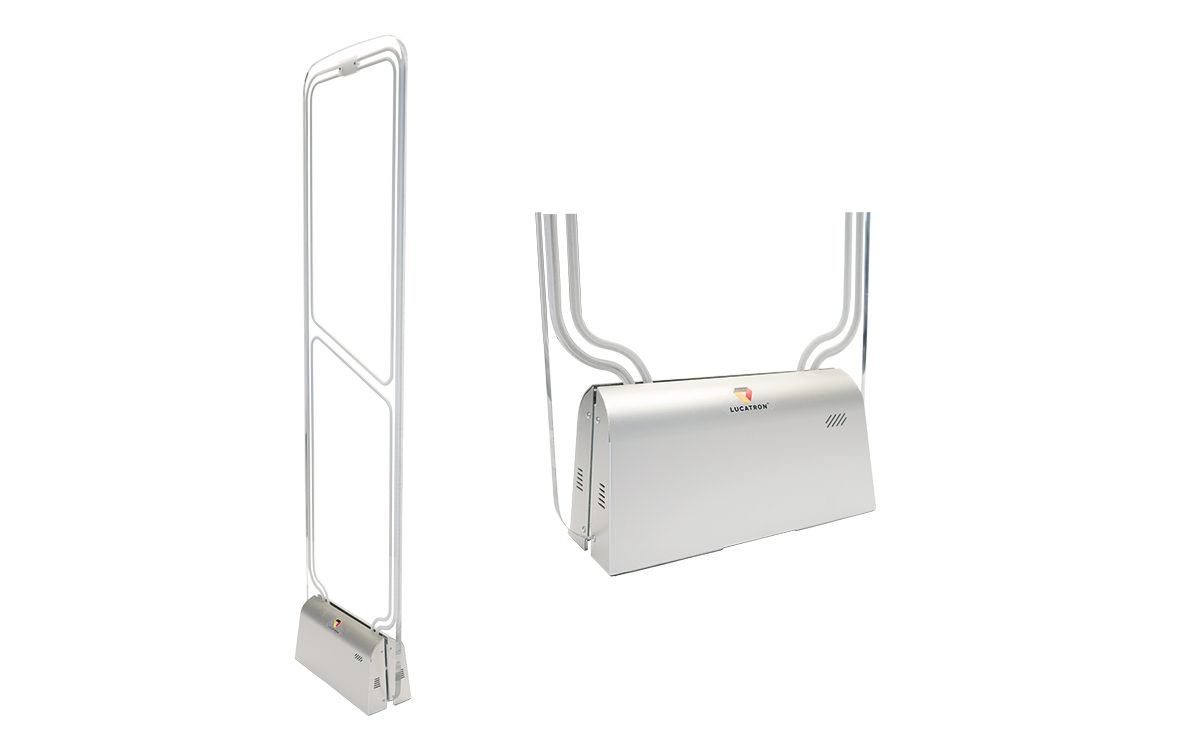

AM URANUS 400

FULL PLEXI SYSTEM

Our new full plexi antenna system for an unobstrusive appearence at the shop entrance.

DIMENSIONS

Height: 1550 mm
Width: 400 mm
Thickness: 20 mm
Base thickness: 135 mm

PSU + 2 Receiver antenna configuration
TRX separated from antenna; 2x 24VAC
Center Frequency 58 KHz
Consumption 0,5A/48 W
Remote tuning ready via RAKO SPHERE

TX RX Configuration*

DR label up to 2.10 m
Super Tag up to 2.15 m
Ferrite Tag up to 2.50 m

TRX Configuration*

DR label up to 1.05 m
Super Tag up to 1.10 m
Ferrite Tag up to 1.25 m

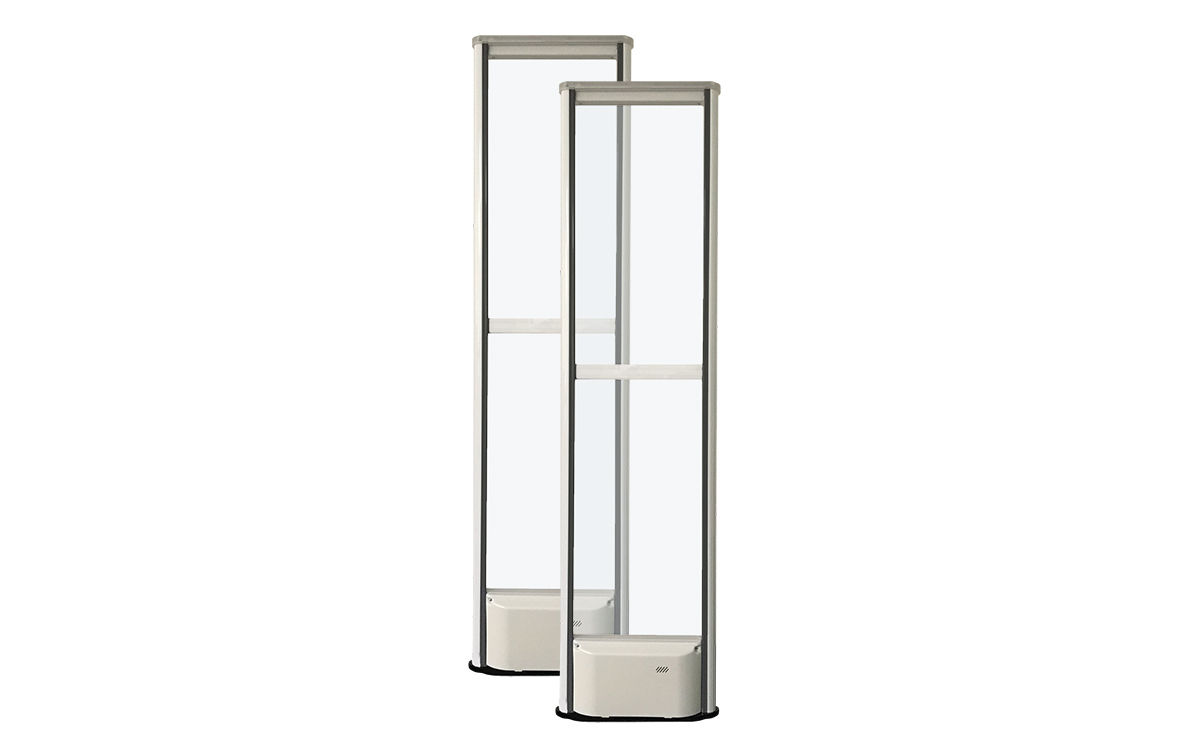

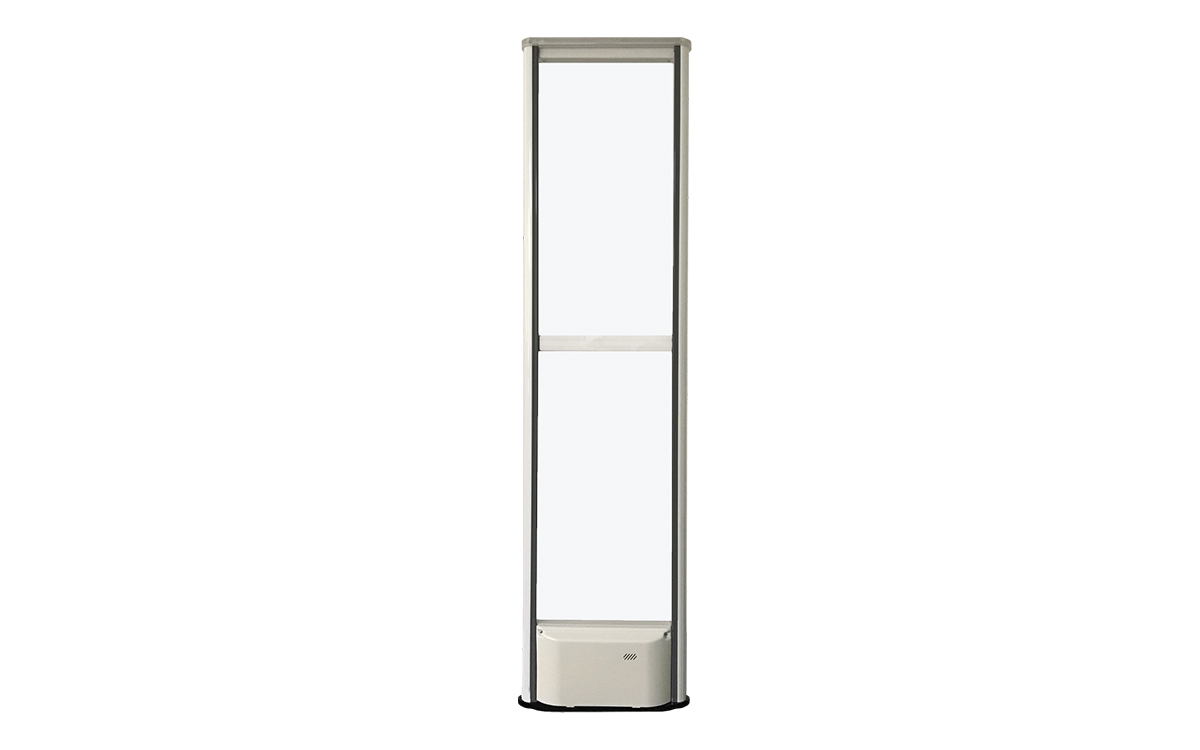

AM SATURN 400 P

WHITE ABS PROFILE SYSTEM

Take advantage of our new ABS frame design and use it with your advertisement.

DIMENSIONS

Height: 1560 mm
Width: 408 mm
Thickness: 45 mm
Base thickness: 109 mm

PSU + 2 Receiver antenna configuration
TRX separated from antenna; 2x 24VAC
Center Frequency 58 KHz
Consumption 0,5A/48 W
Remote tuning ready via RAKO SPHERE

TX RX Configuration*

DR label up to 2.10 m
Super Tag up to 2.15 m
Ferrite Tag up to 2.50 m

TRX Configuration*

DR label up to 1.05 m
Super Tag up to 1.10 m
Ferrite Tag up to 1.25 m

*system performance is subject to quality of used consumables and calculated average of various tag and label positions.
