EAS EM – LABEL.

Find out more about our EM label and hard tag options. The EM label are made at our headquarter in Witzhave. Made in Germany.

We are one of the last producers of EM label world wide. Despite the fact that the demand for other label technologies is rising, we are still continuing our production of EM label. They are available on sheet or roll, with or without dummy barcode.

The electromagnetic EAS system creates a low frequency electromagnetic field (fundamental frequencies between 70 Hz and 1 kHz are typically used) between two pedestals at an exit or checkout aisle. The field continuously varies in strength and polarity, repeating a cycle from positive to negative and back to positive again. With each half cycle, the polarity of the magnetic field between the pedestals changes.

In response to the changing magnetic field created by the transmitter, the magnetic field domain of the tag material abruptly “switches” as the field strength varies past a particular point, whether positive or negative, during each half of the transmit cycle. This abrupt change in the magnetic state of tag material generates a momentary signal that is rich in harmonics (multiples) of the fundamental frequency. Using electronic signal processing techniques, the system identifies that the harmonics are at the right frequencies and levels, and that they occurat the proper time in relation to the transmitter signal. If the criteria are met an alarm occurs.

Detection of the tag is achieved with a transmitter and receiver.

The transmitter and receiver work together to sense harmonics and sum or difference signals generated by the non-linear magnetic response of the material under a mixture of low-frequency (in the 10 Hz to 1000 Hz range) magnetic fields.

When the ferromagnetic material is magnetized, it biases the amorphous metal strip into saturation, where it no longer produces harmonics. Deactivation of these tags is therefore done with magnetization. Activation requires demagnetization.

Due to the convenient dimensions of the tags, and their very low cost, this system is popular in libraries.

  • Mature & reliable system
  • Smaller than RF and AM label
  • Deactivatable and reactivatable
  • Compatible with old existing systems

EAS AM – LABEL.

Our EM label are produced for Barkhausen and Harmonic systems. Therefore they are compatible with Meto, Knogo, Certur and Gateway.

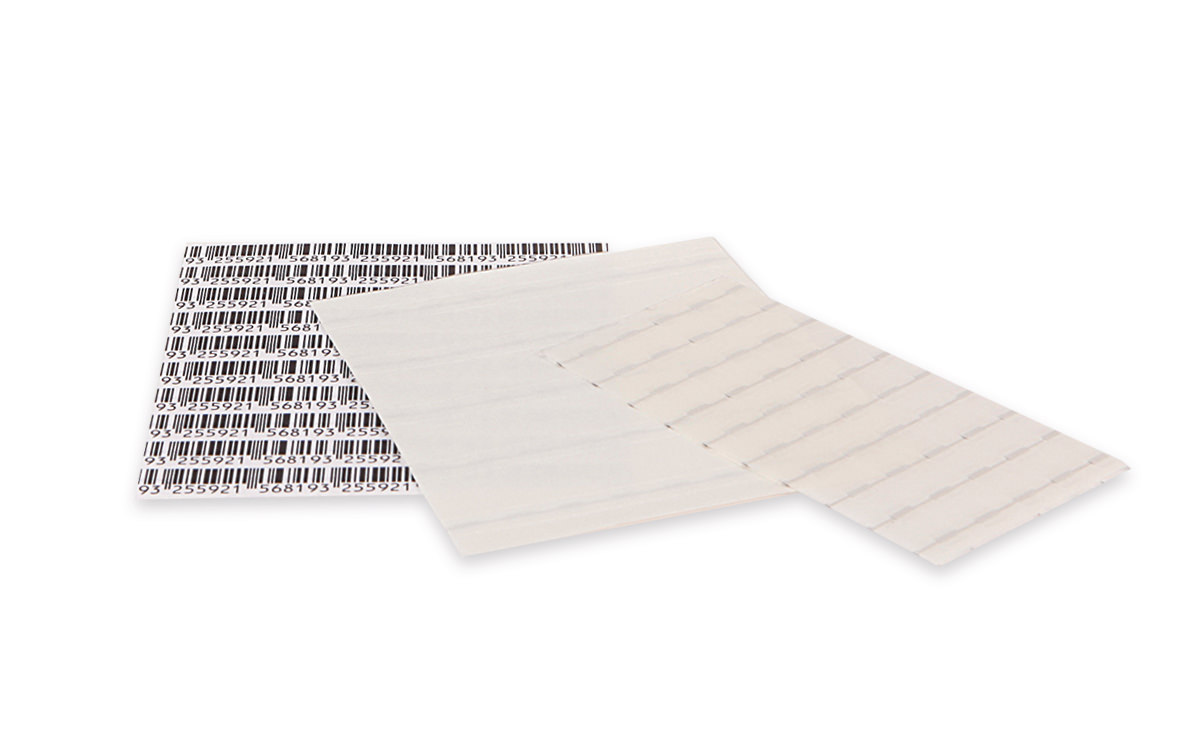

EAS EM Label

ON SHEET

EAS AM Uranus 400 - Full Plexi System

We offer EAS EM Label on sheet in different dimensions and top sides. You can choose between transparent, white or a dummy barcode, with a quantity of 10 labels per sheet, 100 sheets bundled.

DIMENSIONS

10 x 50 mm
10 x 63,5 mm
10 x 90 mmm

transparent
white
dummy barcode

22M85 meta-compatible, deactivatable
56M85 J-wire, deactivatable
Non deactivatable possible

10 labels per sheet
100 sheets bundled

EAS EM Label

ON ROLL

EAS AM Saturn 400 P - white ABS Profile System

You can get different EAS EM Labels on roll in different dimensions from 10x 32mm up to 10x 145mm with a quantity of 1.000 labels per roll and different top sides (transparent, white or dummy code).

DIMENSIONS

10 x 32 mm
10 x 50 mm
10 x 63,5 mm
10 x 90 mm
10 x 145 mm

transparent
white
dummy barcode

22M85 meta-compatible, deactivatable
56M85 J-wire, deactivatable
Non deactivatable possible

1.000 labels per roll

EAS – EM HARD TAGS.

Just as our EM label,  our EM hard tags are produced for Barkhausen and Harmonic systems. Therefore they are compatible with Meto, Knogo, Certur and Gateway.

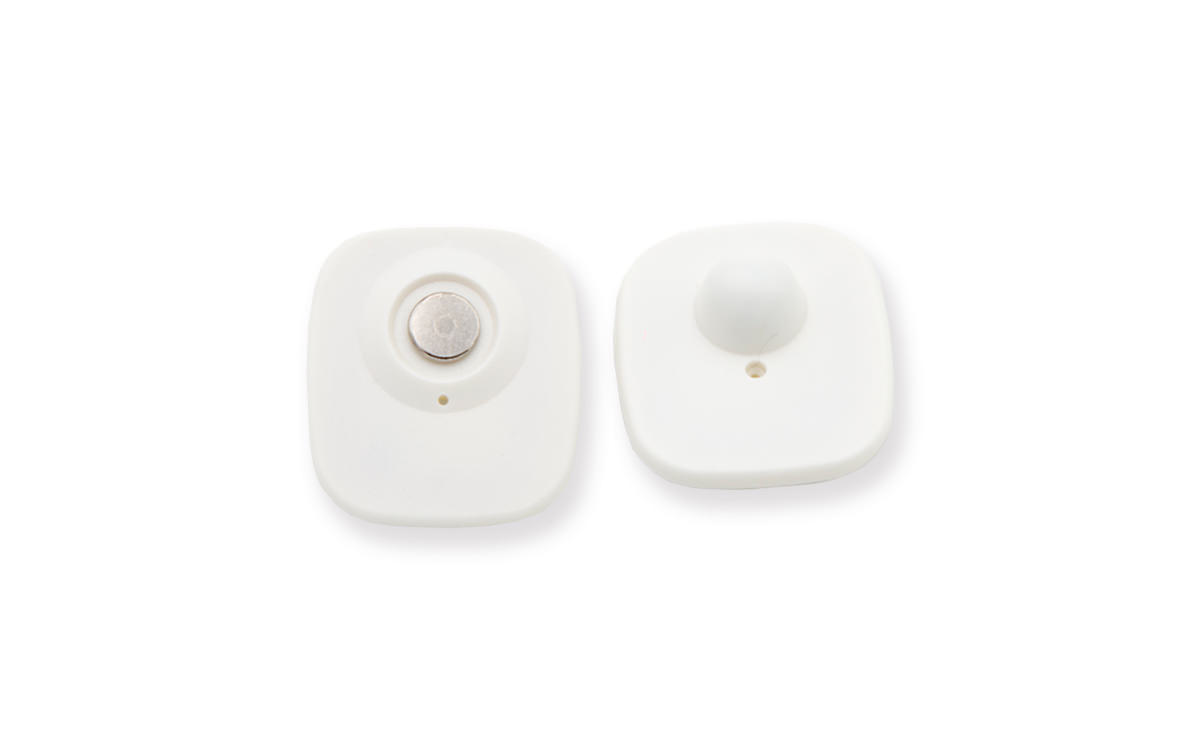

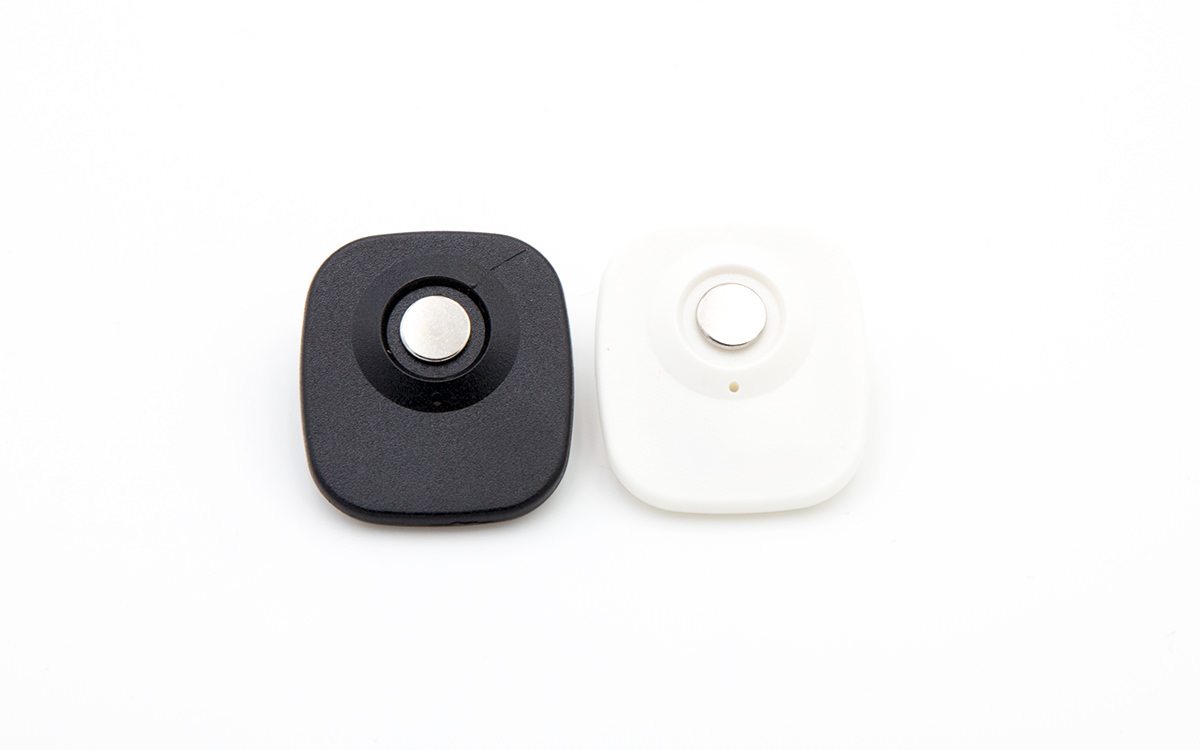

EM MIDI TAG

REGULAR PIN DECENTERED

Small and light weight EM hard tag.

DIMENSIONS

Tag Size: 53×43,5 mm

Color: Black or White
Frequency: Between 70 Hz and 1 kHz
