EAS RF – Systems.

RADIO-FREQUENCY SYSTEMS

Our RF system line has been designed as variable as the current market requires. The line of antennas consists of aluminum profile frames in an open and transparent acrylic version, available with an optional advertising panel for specific clients. This range is also complemented with
a fully acrylic design antenna with integrated decoration light for the high end retailers with RGBW light panel.

Our designer frames and systems are compatible with various ADD ON products such as metal detector, people counter, IN/OUT alarm, key lock, etc. to enable various customized applications.

RAKO provides RF systems in both MONO and TXRX technologies.

Like other EAS technologies, swept-rf uses a transmitter to create a surveillance are where tags and labels are detected. The transmitter sends a signal that varies between 7.4 and 8.8 Mhz (millions of cycles per second), which is why it is called swept; is sweeps over a range of frequencies.

The transmitter signal energizes the swept-rf tag or label, which is composed of a circuit containing a capacitor and an inductor or coil, both of which store electrical energy. When connected together in a loop, the components can pass energy back and forth or “resonate”. The frequency at which the circuit resonates is controlled by matching the storage capacity of the coil and capacitor. The tag responds by emitting a signal that is detected by a receiver. In addition to the small tag signal, the receiver also responds to the much larger transmitter signal. By detecting a phase difference between these two signals, and other properties of the tag signal, the receiver recognizes of a tag and generates an alarm.

RF Sytems are availble as mono antennas to use them as standalone, or as dual system where you can use multiple antennas. In order to use teh security features, you only need RF Label such as paper hangs tags, sew in label oder hard tags.

  • Easy and fast integration

  • Cheap investment and running costs compared to RFID

  • RF is the most used security sytem in the world

  • Reliable performance

  • European production

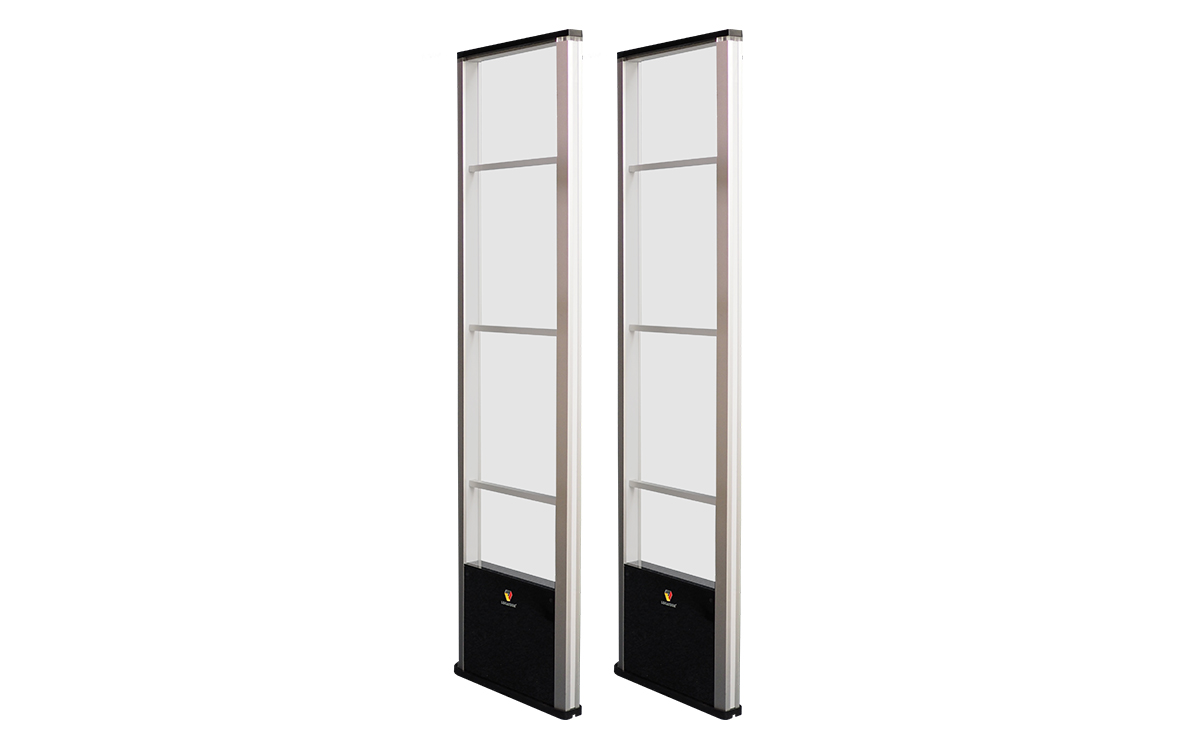

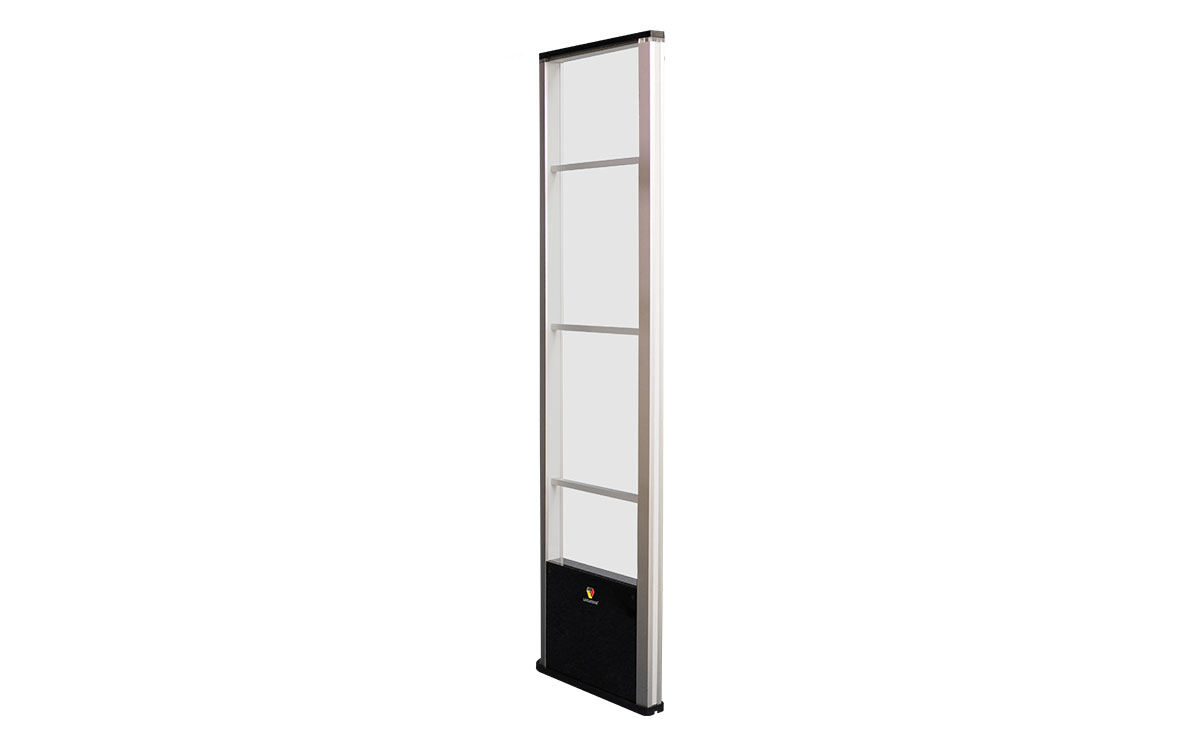

MERKUR P 410

SILVER ABS PROFILE SYSTEM

Our Merkur antenna design has a plexi panel with the option to insert an advertisement panel.  Optional add ons are people counter, metal detectors or alarm modules.

DIMENSIONS

Height: 1540mm
Width: 410mm
Thickness: 45mm
Base thickness: 56mm

TX-RX CONFIGURATION

System LT-100
Lucatron 40×40 50mμ label up to 1.65m
Lucatron 40×40 80mμ label up to 1.70m
Lucatron 50mm hard tag up to 2.00m

MONO CONFIGURATION

System KTM
Lucatron 40×40 50mμ label…..up to 2x 1.05m
Lucatron 40×40 80mμ label…..up to 2x 1.10m
Lucatron 50mm hard tag……..up to 2x 1.20m

Subject to specific antenna models
People Counter
Metal Detector
Alarm module (IN/OUT alarm, sound alarm options)
Key lock
Antenna bumper

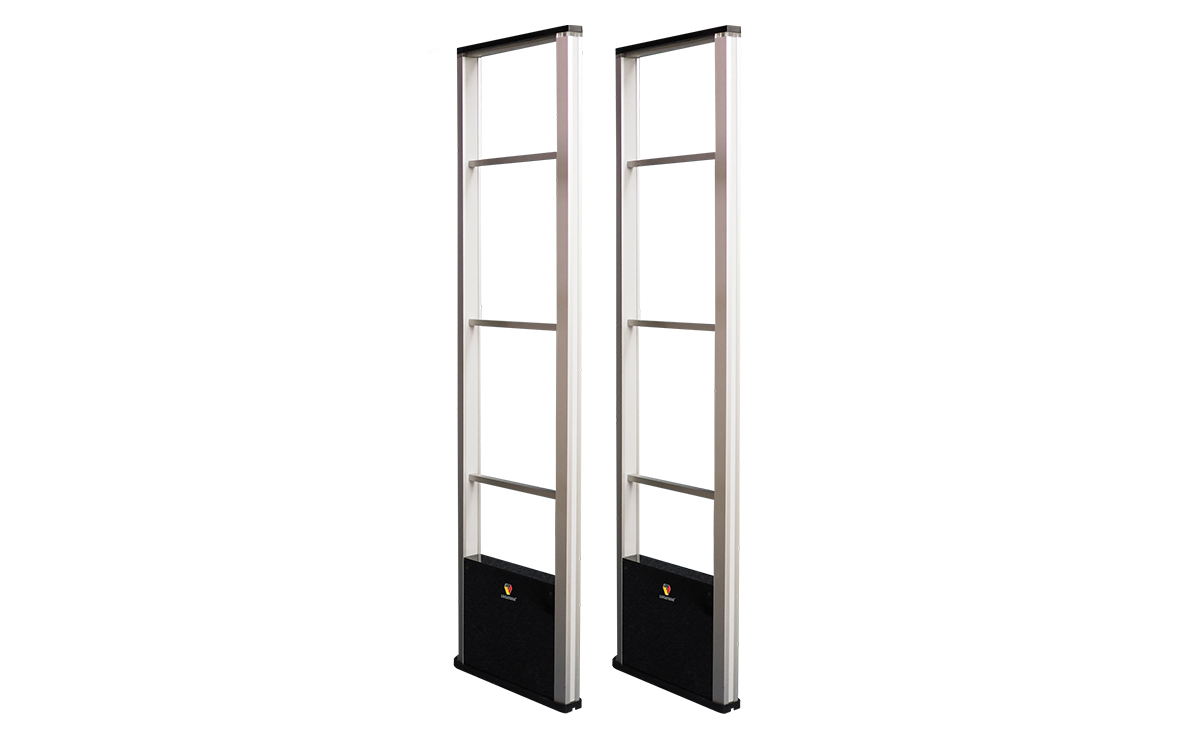

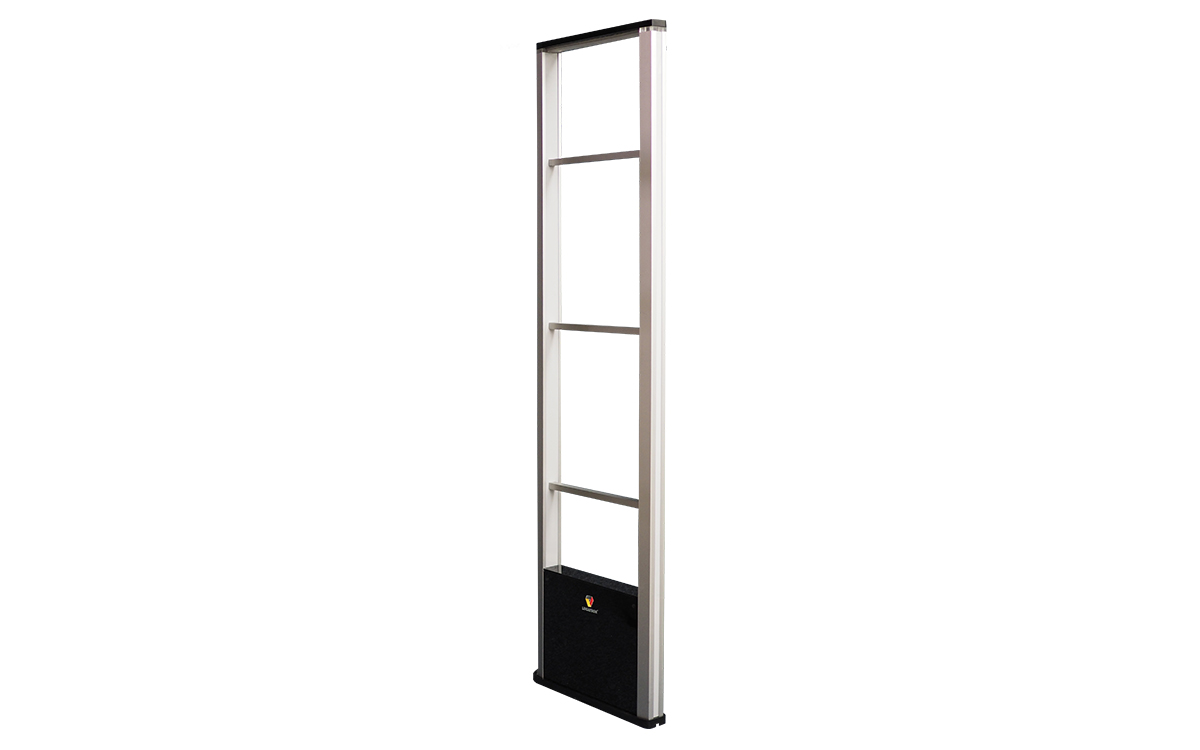

MERKUR O 410

SILVER ABS PROFILE SYSTEM

 Our Merkur O 410 is an open antenna design. It has the same performance and is slightly cheaper compared to the other antennas.

DIMENSIONS

Height: 1540mm
Width: 410mm
Thickness: 45mm
Base thickness: 56mm

TX-RX CONFIGURATION

System LT-100
Lucatron 40×40 50mμ label up to 1.65m
Lucatron 40×40 80mμ label up to 1.70m
Lucatron 50mm hard tag up to 2.00m

MONO CONFIGURATION

System KTM
Lucatron 40×40 50mμ label…..up to 2x 1.05m
Lucatron 40×40 80mμ label…..up to 2x 1.10m
Lucatron 50mm hard tag……..up to 2x 1.20m

Subject to specific antenna models
People Counter
Metal Detector
Alarm module (IN/OUT alarm, sound alarm options)
Key lock
Antenna bumper

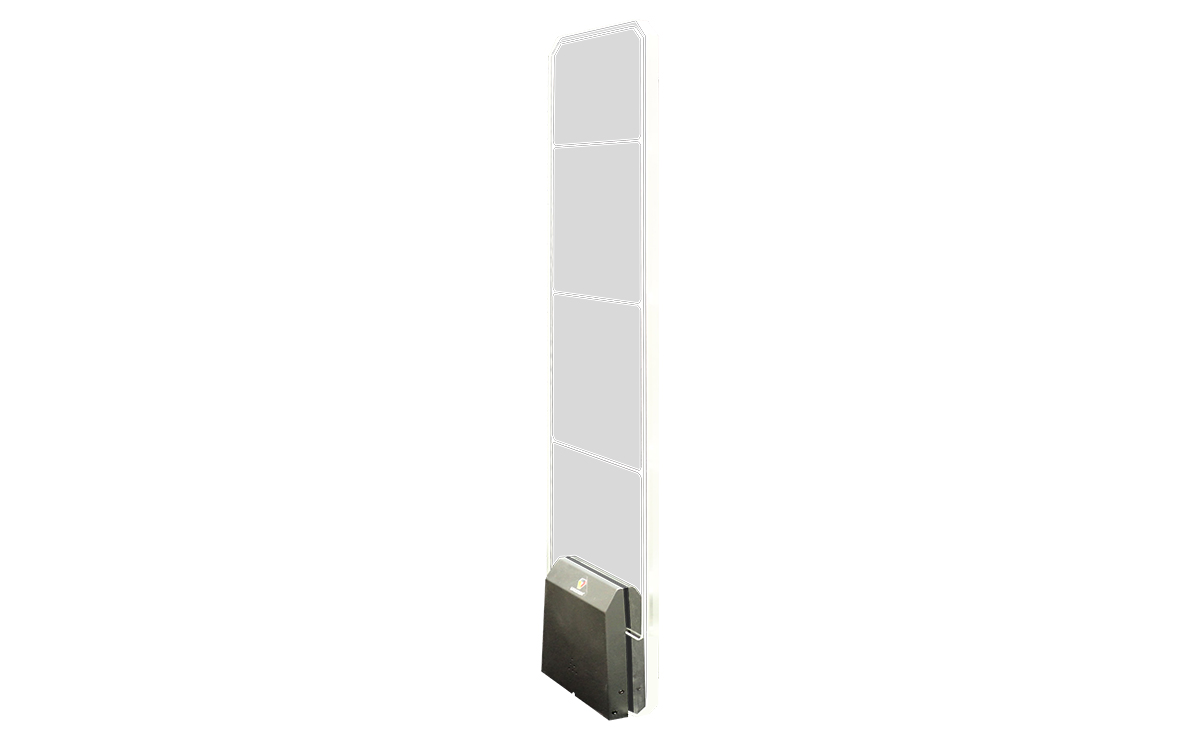

NEPTUN 400

FULL PLEXI SYSTEM

The full plexi design of the RF Neptun offers the same performance as the Merkur antennas, but is less obstrusive in its appearence.

DIMENSIONS

Height: 1508mm
Width: 400mm
Thickness: 20mm
Base thickness: 84mm

TX-RX CONFIGURATION

System LT-100
Lucatron 40×40 50mμ label up to 1.65m
Lucatron 40×40 80mμ label up to 1.70m
Lucatron 50mm hard tag up to 2.00m

MONO CONFIGURATION

System KTM
Lucatron 40×40 50mμ label…..up to 2x 1.05m
Lucatron 40×40 80mμ label…..up to 2x 1.10m
Lucatron 50mm hard tag……..up to 2x 1.20m

Subject to specific antenna models
People Counter
Metal Detector
Alarm module (IN/OUT alarm, sound alarm options)
Key lock
Antenna bumper

RF – ACCESSORIES.

Find out more about our high speed deactivators and tag checking hand verifiers.

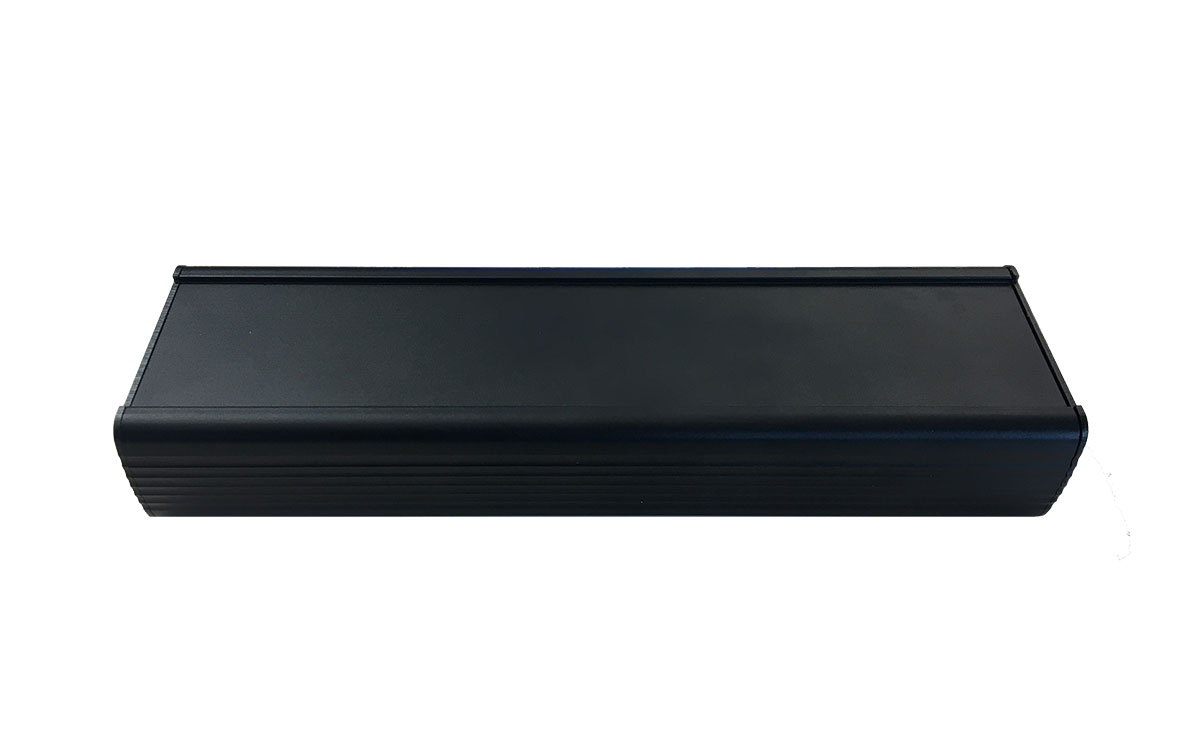

RF DEACTIVATOR LTD-200

HIGH SPEED LABEL DEACTIVATOR

RAKO’s high speed label deactivator combines deactivation and detection function. Due to an inbuilt beeper the deactivator allows for sound check of successful label deactivation or in case of no deactivation a constant beep will alert you that the deactivation process was unsuccessful. Due to the integrated receiving feature you can also use our LTD-200 as a tag checker. Enables connection of the single loop pad inside barcode scanners.

DIMENSIONS

Size: 240x230x26 mm

Frequency: 7.6 – 8.8 MHz
Power supply: 12 VDC
Sync: Line via PSU

Up to 25 cm deactivation height
Integrated beeper and LED
High deactivation power
Interlock possibility with POS scanner

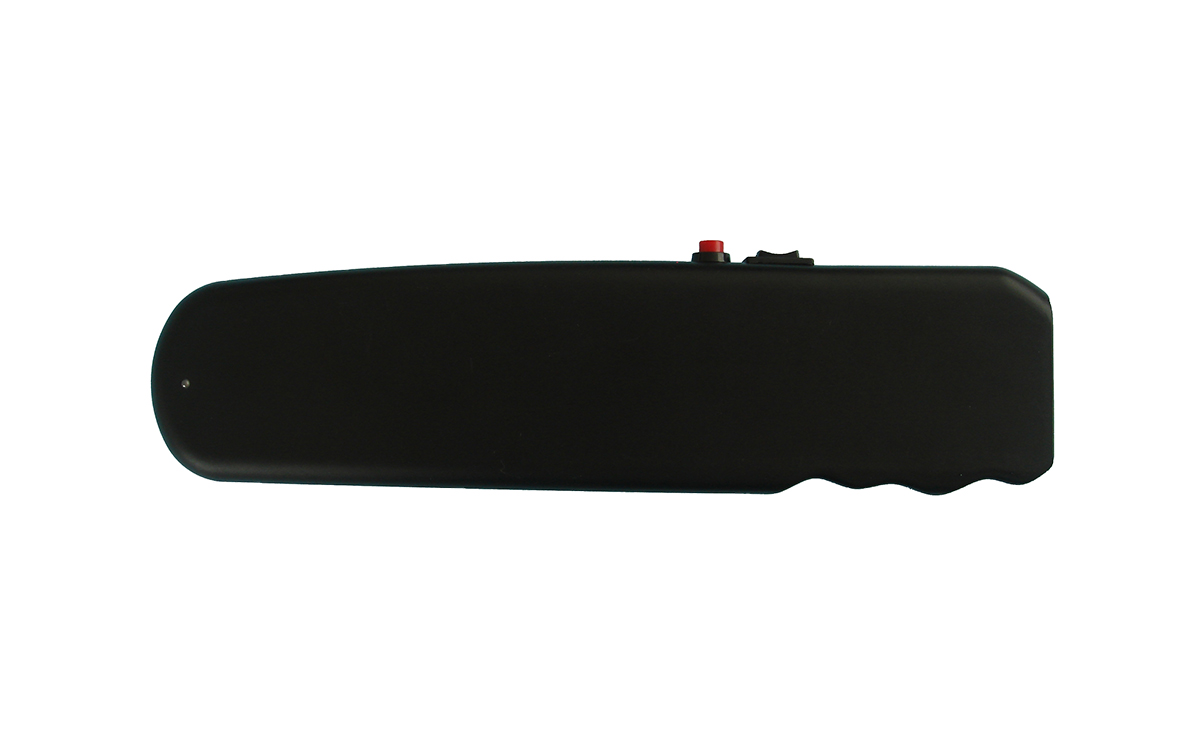

RF HAND VERIFIER & DEACTIVATOR

ACCESSORIE

Our Hand Verifier offers dual functionality combining tag checking with label deactivation. You switch between the modes using a selection switch. The unit is powered by a rechargeable high capacity power polymer battery enabling 500 or more verifying or deactivation cycles.

DIMENSIONS

Size: 280 x 70 x 33 mm

Frequency: 7.5 – 8.9 MHz
Charger: 110V – 240V

Up to 20 cm detection distance
Up to 15 cm deactivation distance
Integrated beeper
Mode indication LED
High deactivation power
Key lock to prevent unauthorized deactivation
Continuous beep in case of deactivation failure
Short beep when deactivated

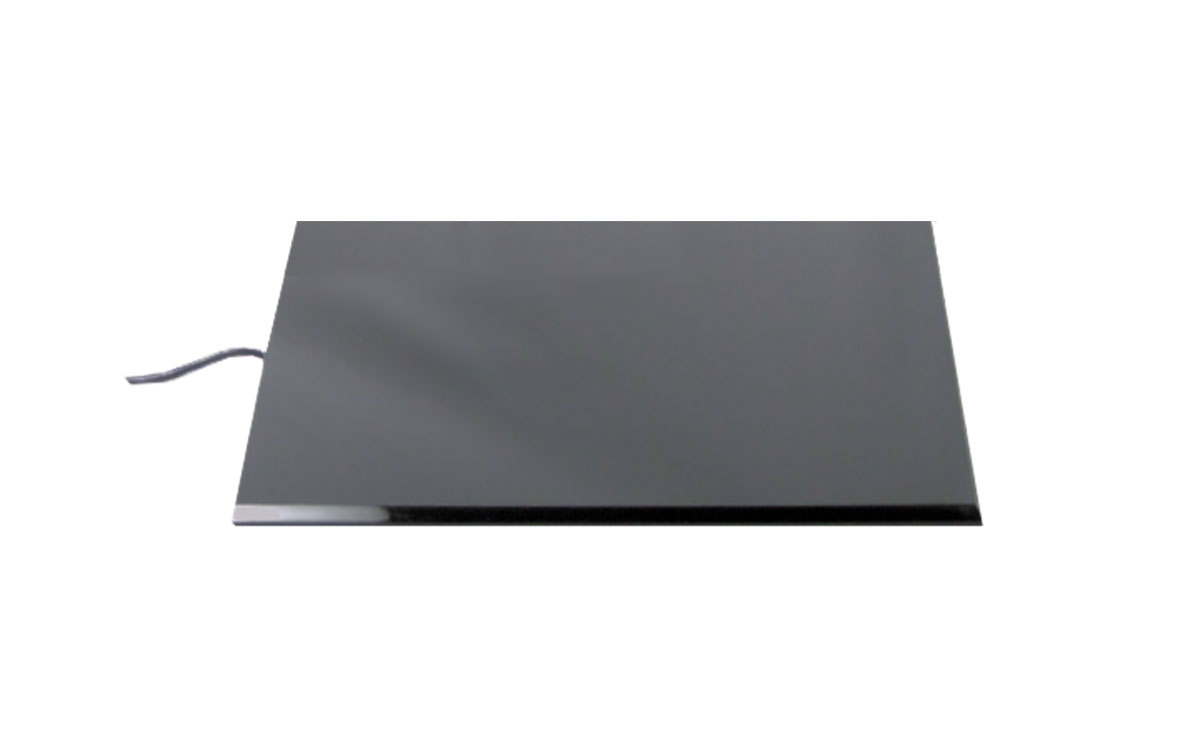

RF DEACTIVATOR PAD

ACCESSORIE

The Deactivator Pad is supplied as an external accessory for our RF Deactivator LTD-200. Available in black colour with beveled edges.
